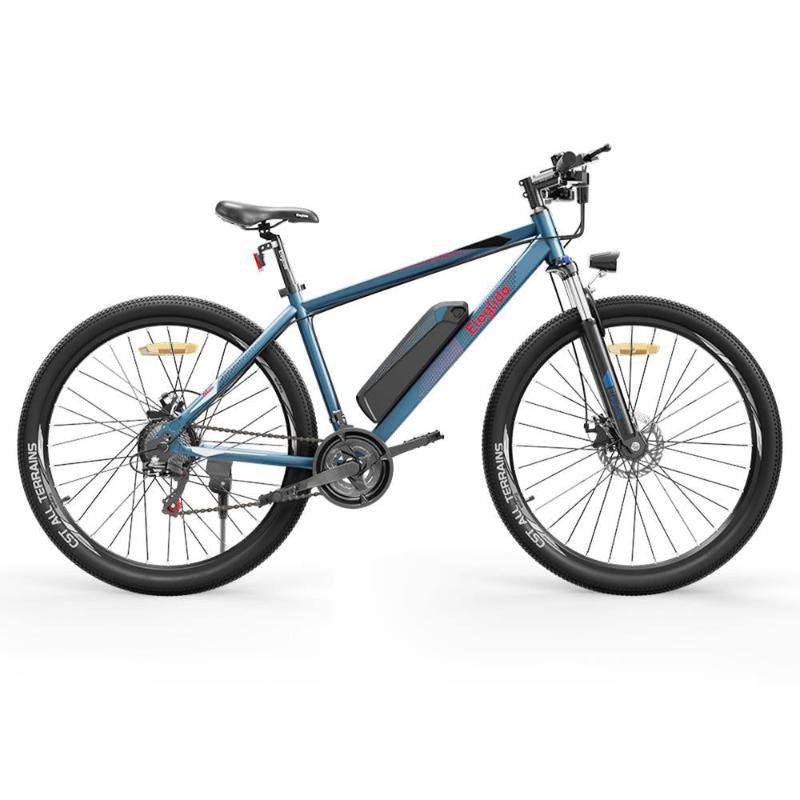

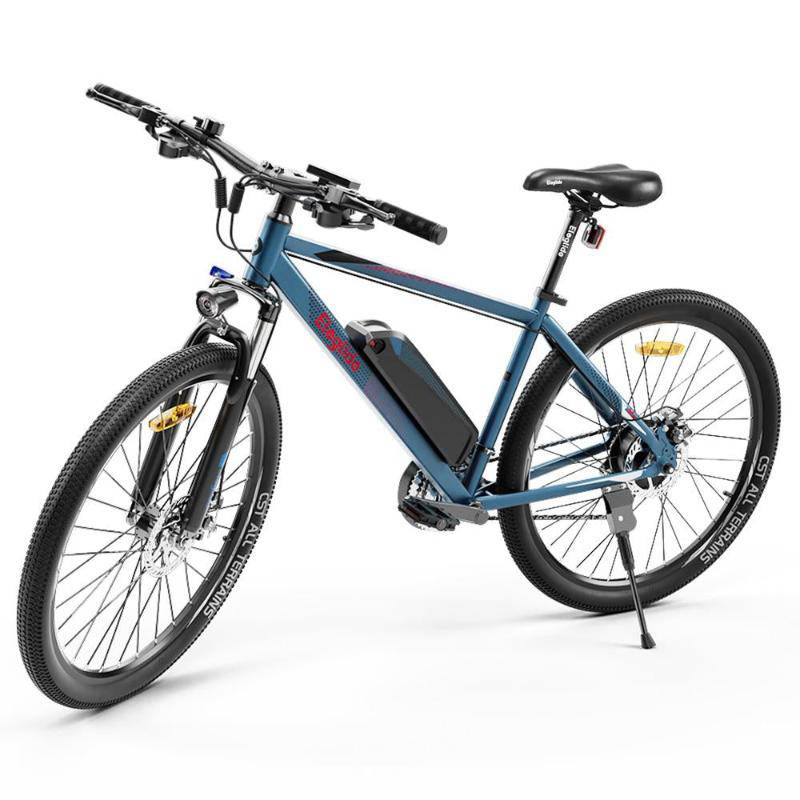

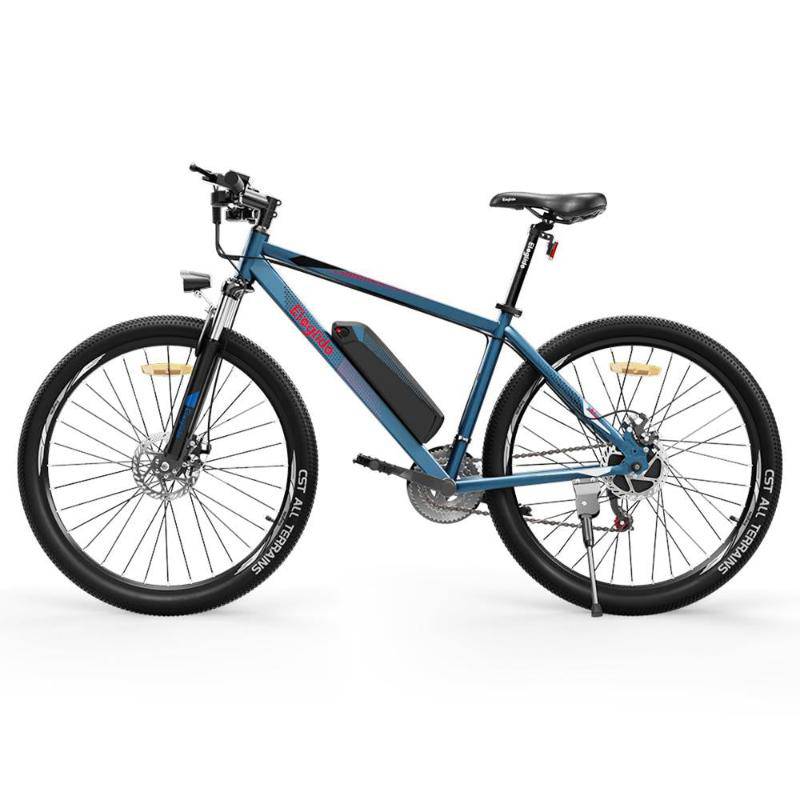

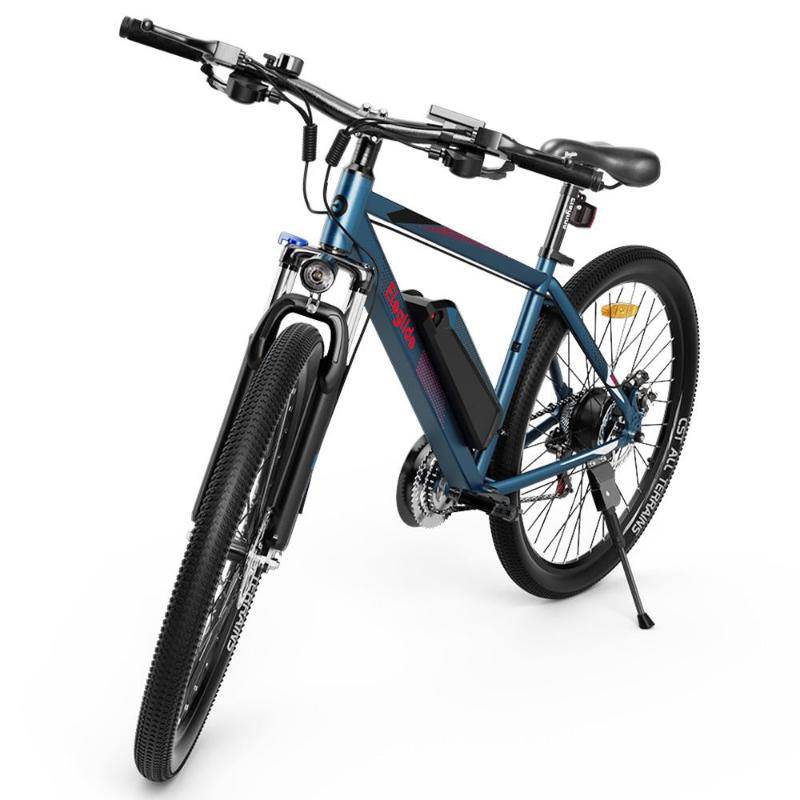

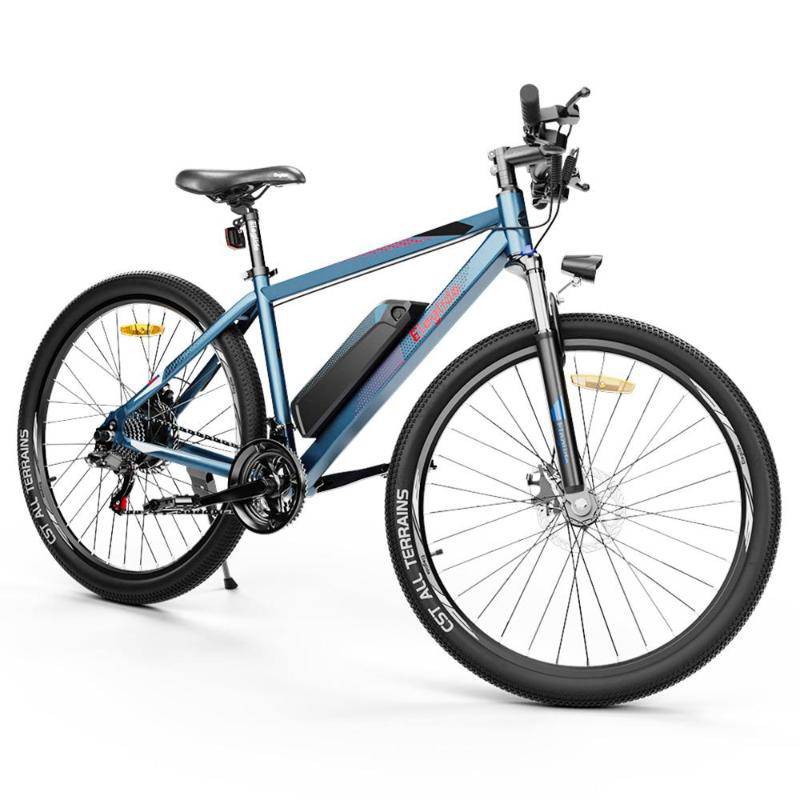

Eleglide Electric Mountain Bike M1

Description

The Eleglide Electric Mountain Bike M1 is an affordable and practical electric bike designed for both casual cycling and light off-road riding. It combines features of a traditional mountain bike with the added boost of an electric motor, offering convenience and versatility for riders who want to tackle a variety of terrains without exerting too much effort.

Specification

Material:   Aluminum Alloy

Size of Frame:   27.5"X17"

Max. Range:   65km (Assist Mode), No Limit (Manual Mode)

Test Condition:   The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C.

Max. Speed:   25 km/h

Max. Load:   100 KG

Slope:  15°

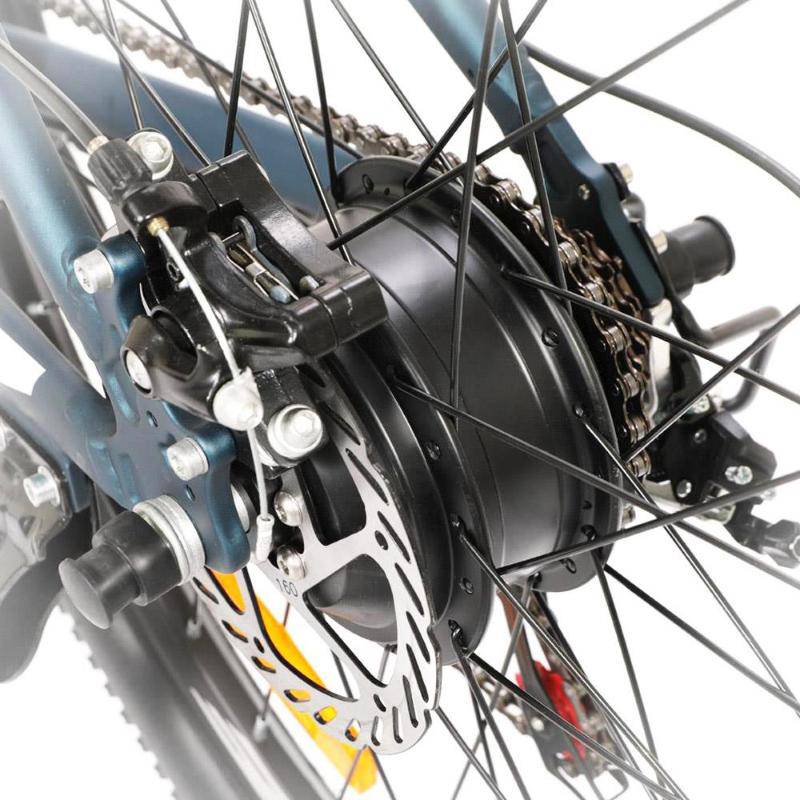

Motor:   250W 36V, 210 (Max RPM), 45N.M (Max Output Torque), 500W (Max Inst. Power)

Motor Brand:   XOFO Motor

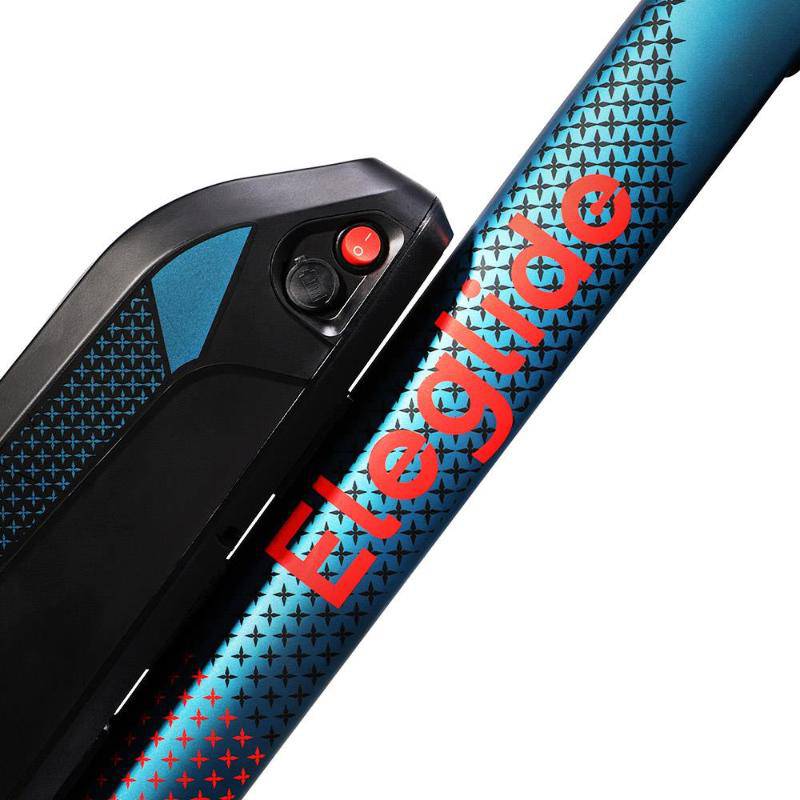

Battery:   7.8Ah, 36V, 270Wh, with Battery Protection System

Charger:   100-240V 2A (Input), 42V 2A (Output)

Charging Time:   About 4.5 Hours

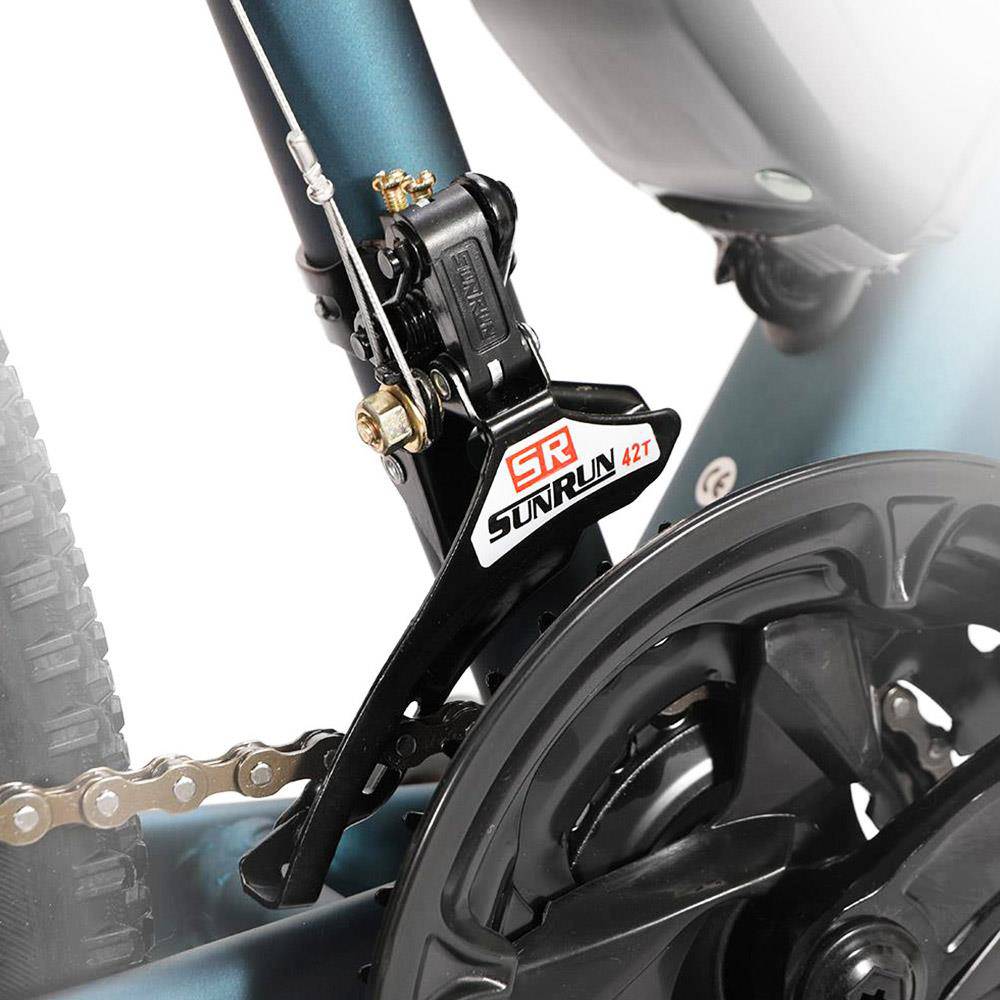

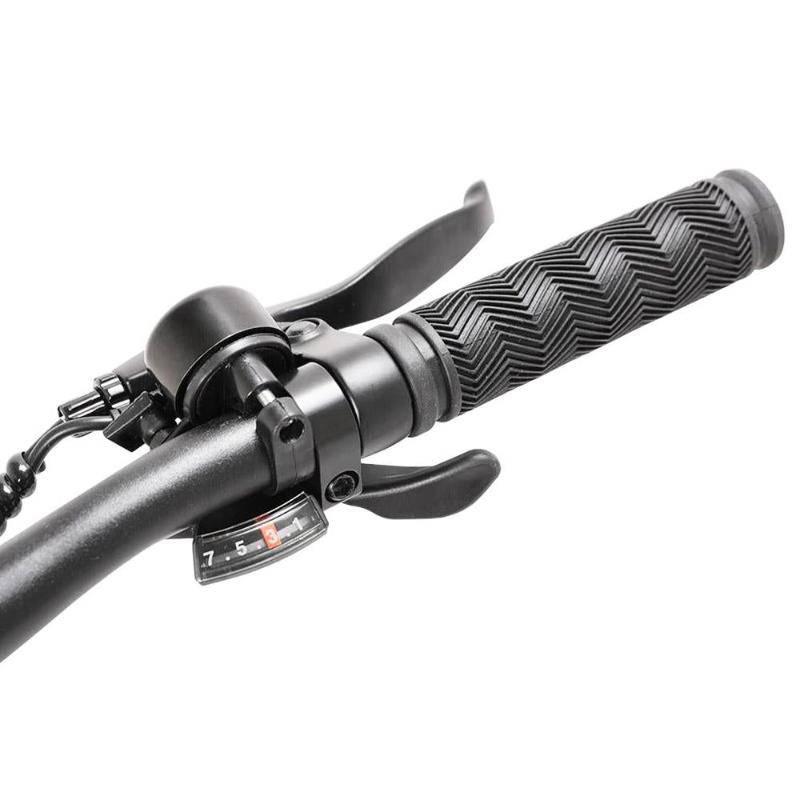

Derailleur:   21 Speed Shimano Gear (Front 3, Rear 7)

Braking System:   Dual Disc Brakes & Auto Power-off Design

Front & Rear Brake:   Mechanical Disc-160mm Rotor

Suspension:   Hydraulic Damping with Lockout

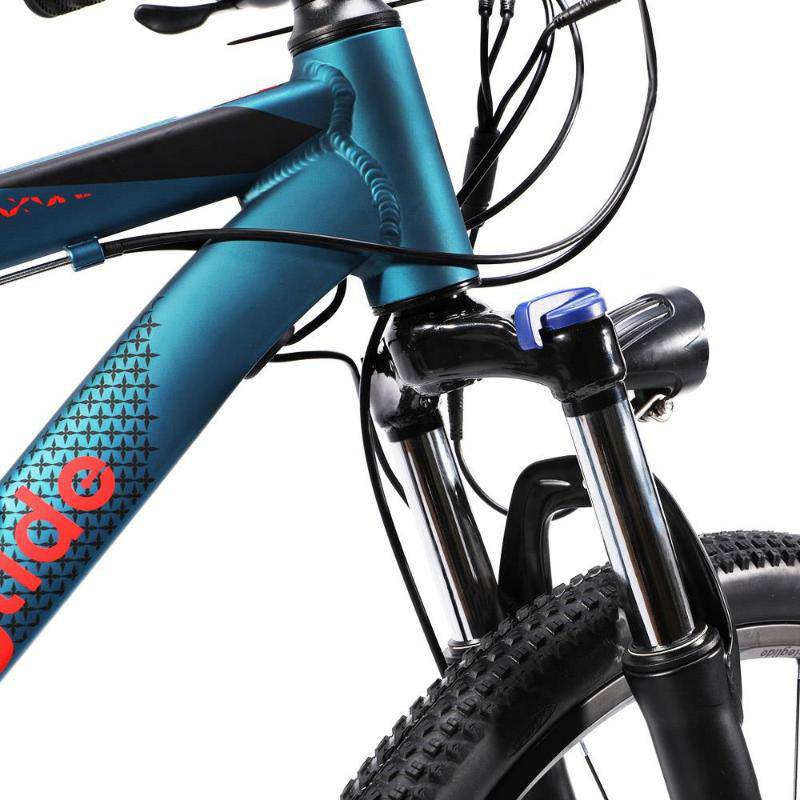

Fork:   Hydraulic with Lockout-100mm travel

Tires:   27.5"x2.1" CST Pneumatic Rubber Tires, 45-65PS3I (Tire Pressure)

Chain Plate:   42T 34T 24T

Light:   LED, 1.65W, 20° (Beam Angle), 0.5㎡ (Irradiated Area)

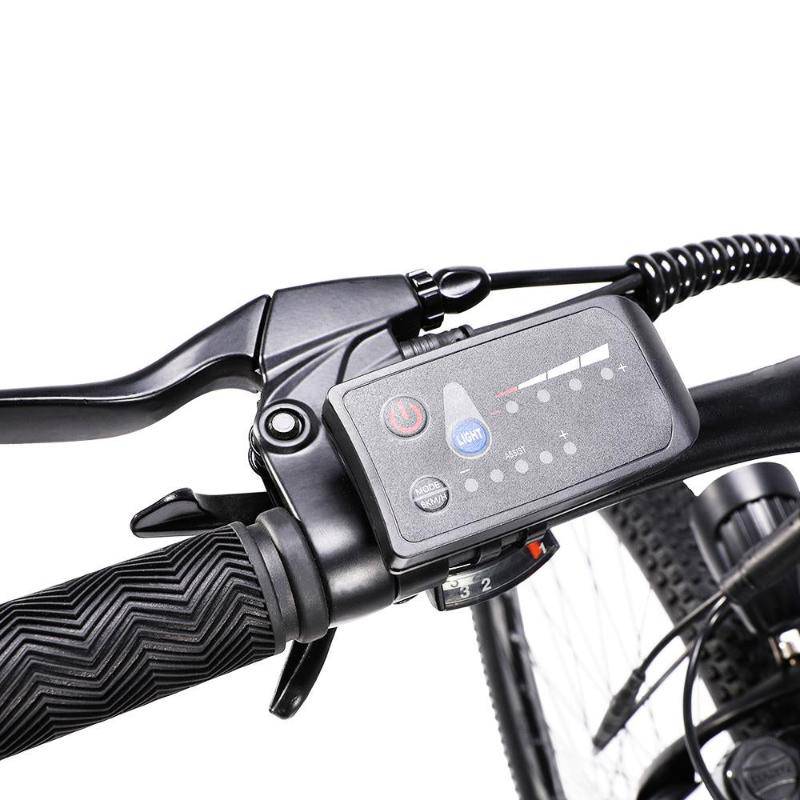

Display:   Intelligent LED Display

Waterproof Rate:   IPX4

Recommended Rider Heights:  160-185cm (5.25ft-6.07ft)

5 Speed Mode

• Speed 1: 12 km/h
• Speed 2: 16 km/h
• Speed 3: 20 km/h
• Speed 4: 23 km/h
• Speed 5: 25 km/h

Weight & Size

Weight:  21.3KG (N.W.), 26KG (G.W.)

Package Size:  1480x240x770mm

Unfolded Size:  1790x680x1041mm

Length of Handlebar:  680mm (26.8")

Height of Saddle (From The Ground):  830-1030mm (33"-40.5")

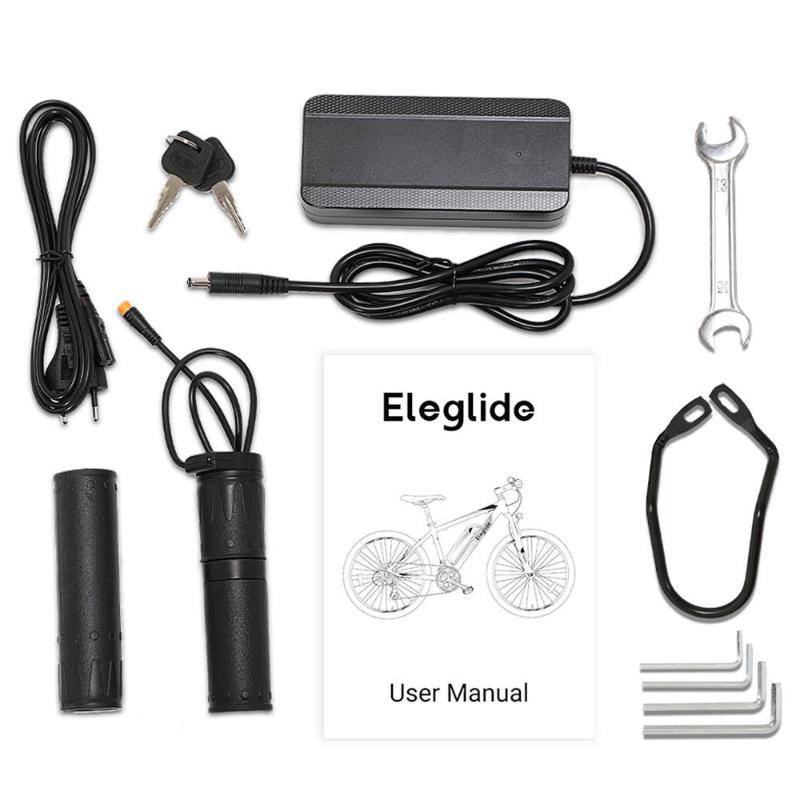

Package Contents

• 1 x M1 Bike
• 2 x Pedal
• 1 x Charger
• 1 x Tool Kit
• 2 x Key
• 1 x User Manual
• 2 x Spoke Reflector

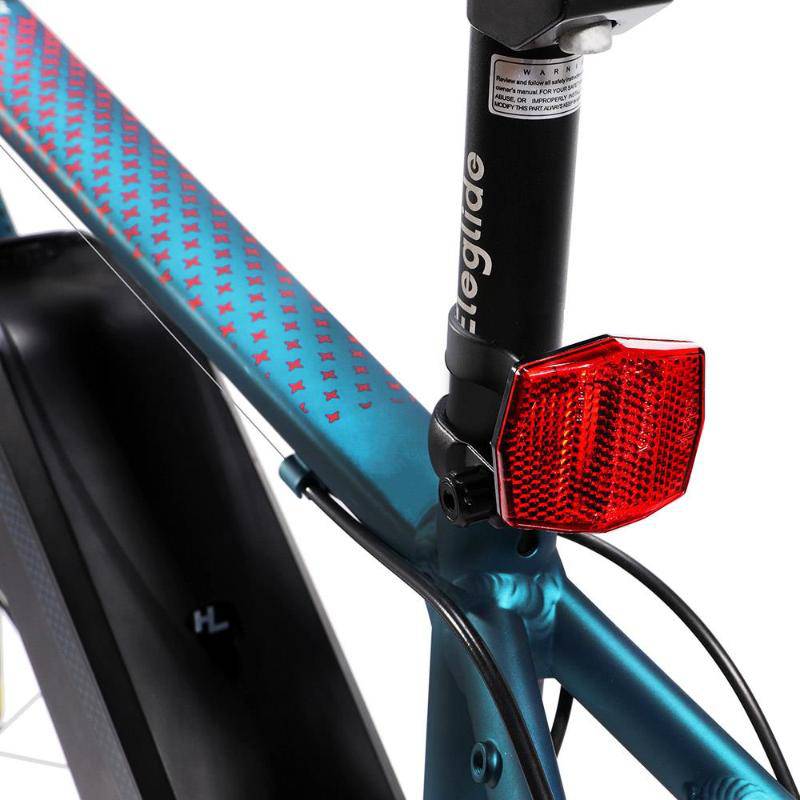

• 1 x Rear Reflector
