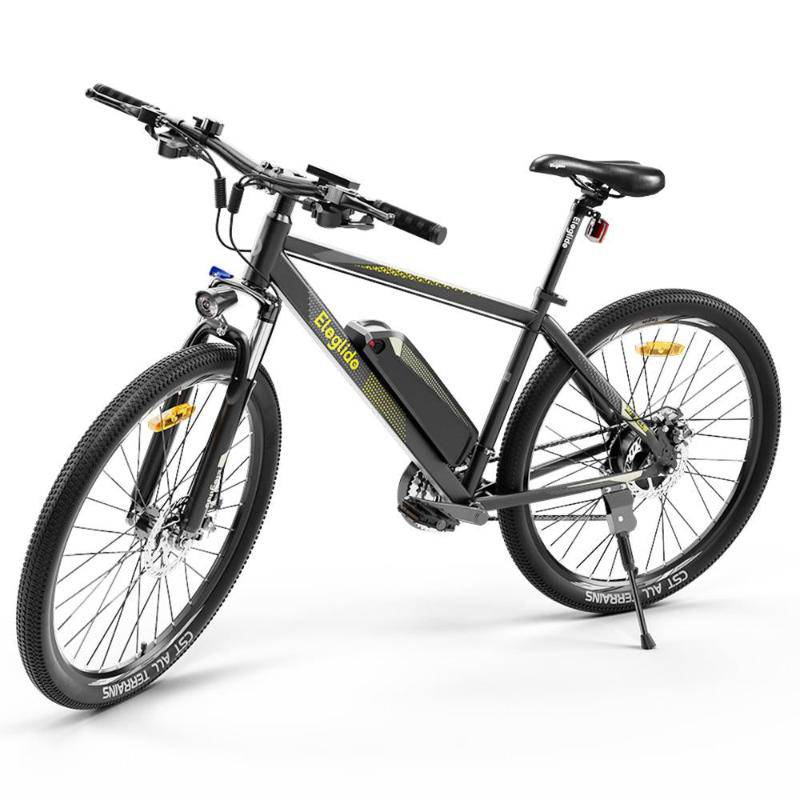

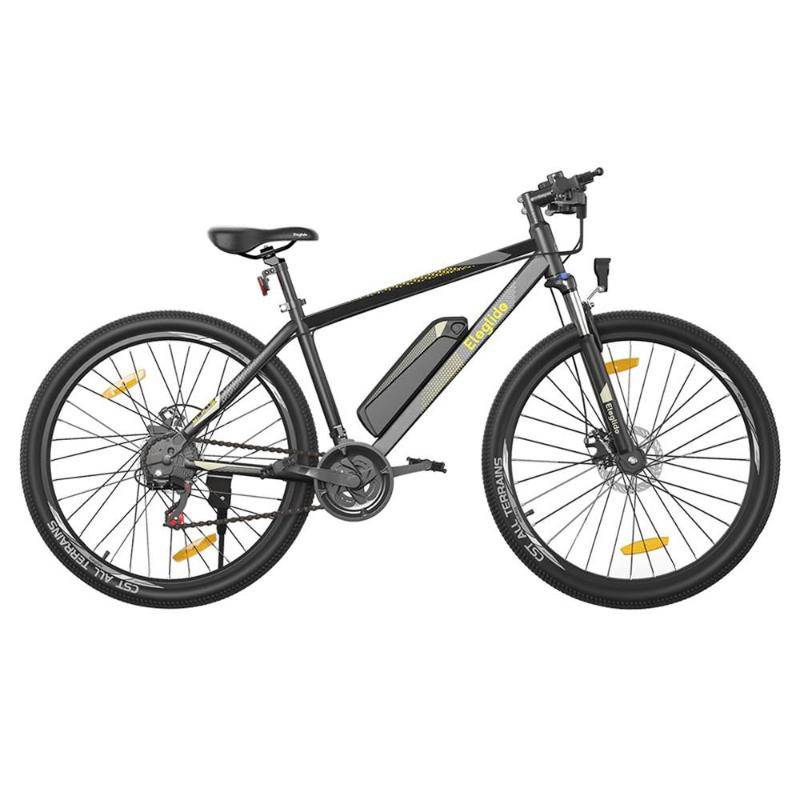

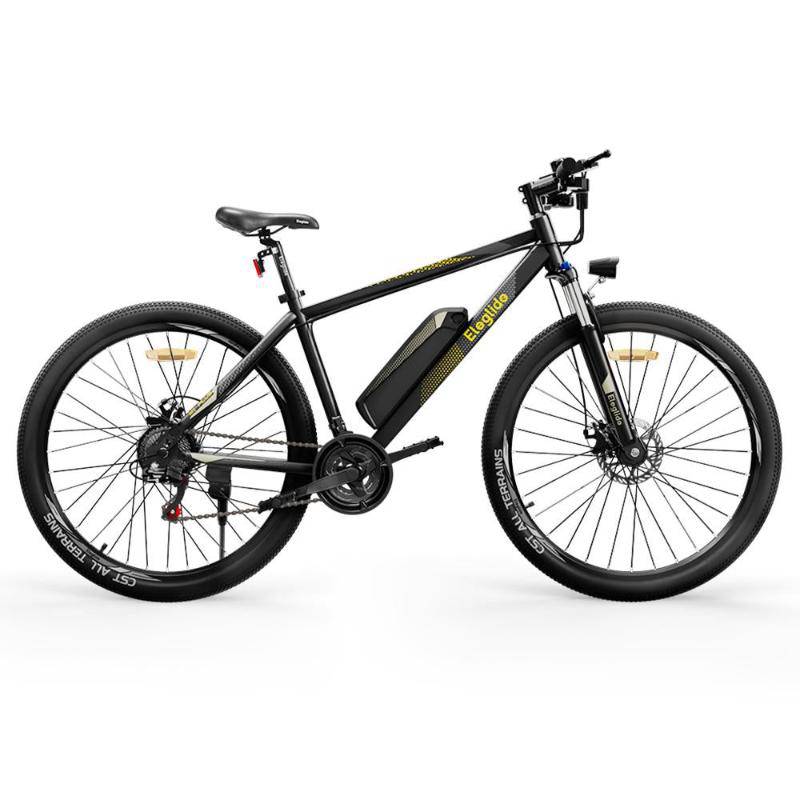

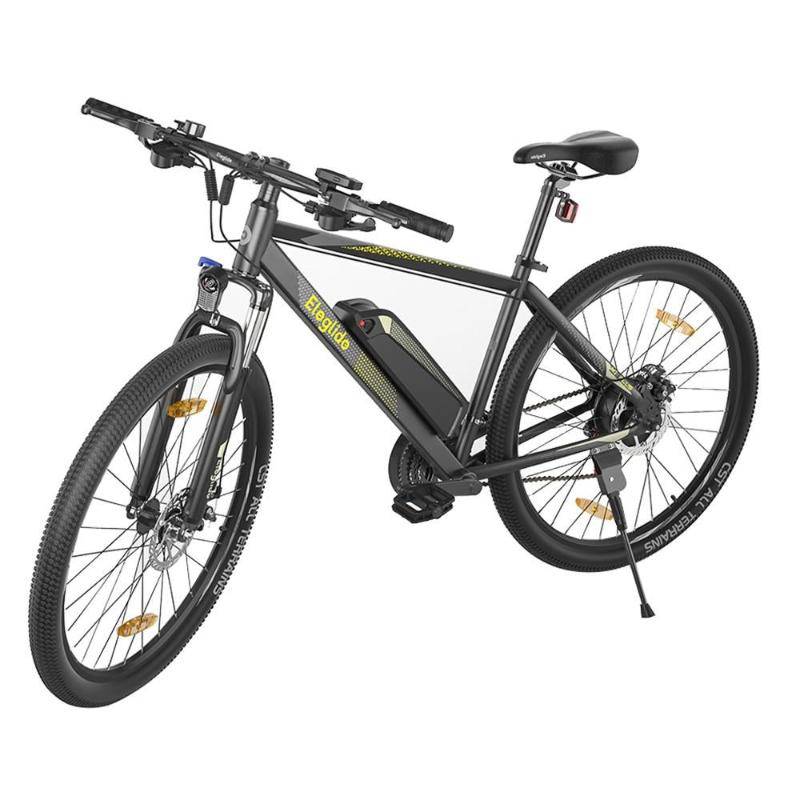

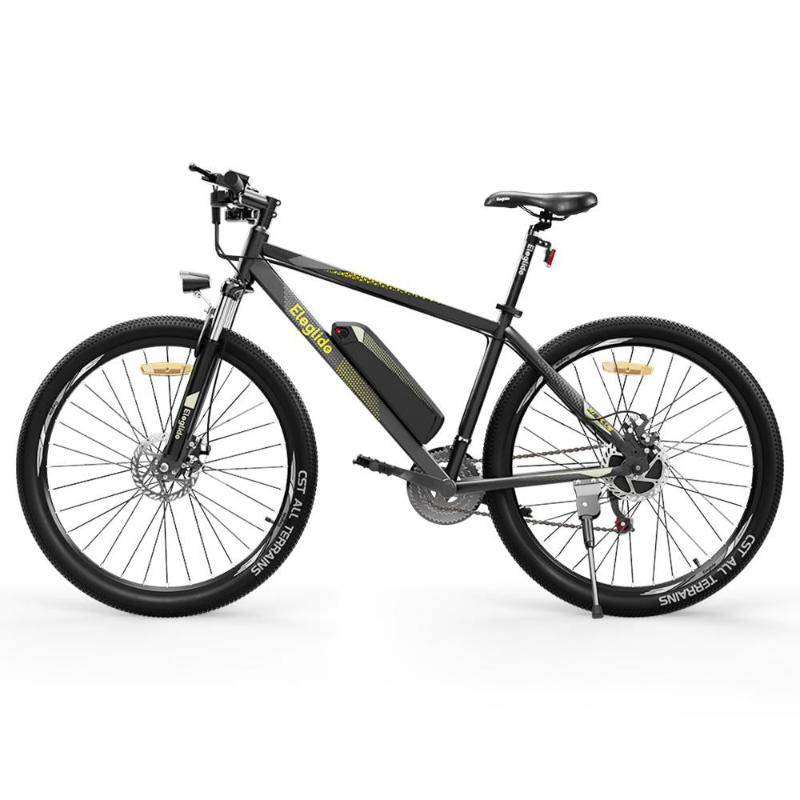

Eleglide Electric Mountain Bike M1 Plus
Eleglide Electric Mountain Bike M1 Plus
Couldn't load pickup availability
The Eleglide M1 Plus offers a solid upgrade over the original M1, with a stronger motor, larger battery, better suspension, and hydraulic brakes. It strikes a good balance between performance and affordability, making it an excellent choice for riders looking for a more capable e-mountain bike without spending too much money.
Whether you're commuting on mixed roads or exploring light off-road trails, the M1 Plus offers plenty of power, comfort, and versatility for a range of riders. It’s an ideal option for anyone looking to get into the world of electric mountain bikes, or for those who want to upgrade from an entry-level model like the M1.
Specification
Material: Aluminum Alloy
Size of Frame: Wheel Size M( 27.5"): 27.5"X18" Wheel Size L(29"): 29" x 19"
Max Range: 100km (Assist Mode), No Limit (Manual Mode)
Test Condition: The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C.
Max. Speed: 25 km/h
Max. Load: Wheel Size M (27.5"): 100 kg
Wheel Size L (29"): 120 kg
Slope: 15°

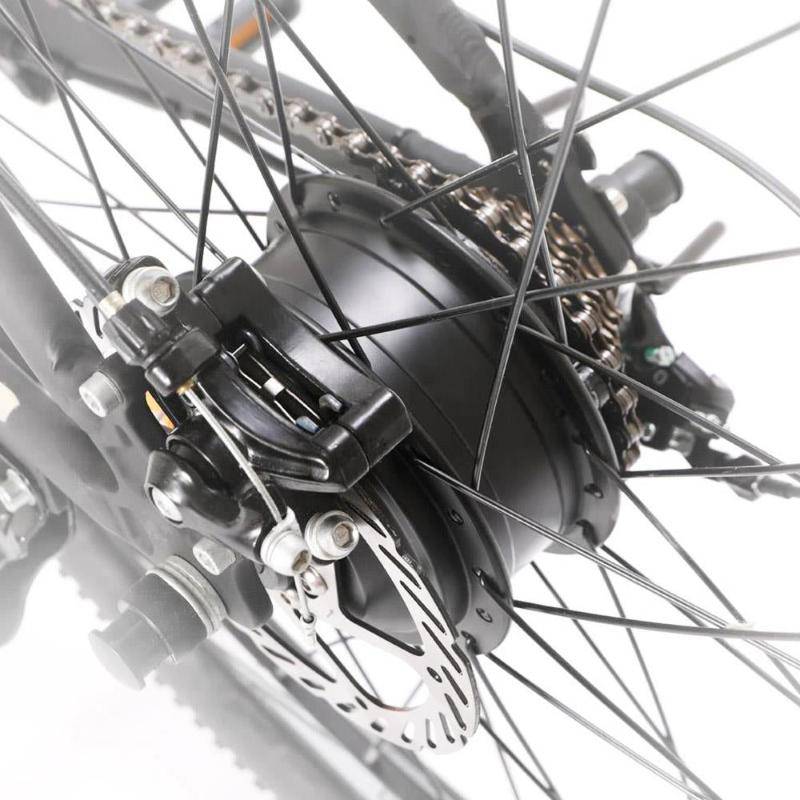

Motor: 250W 36V, 210 (Max RPM), 45N.M (Max Output Torque), 400W (Max Inst. Power)
Motor Brand: XOFO Motor

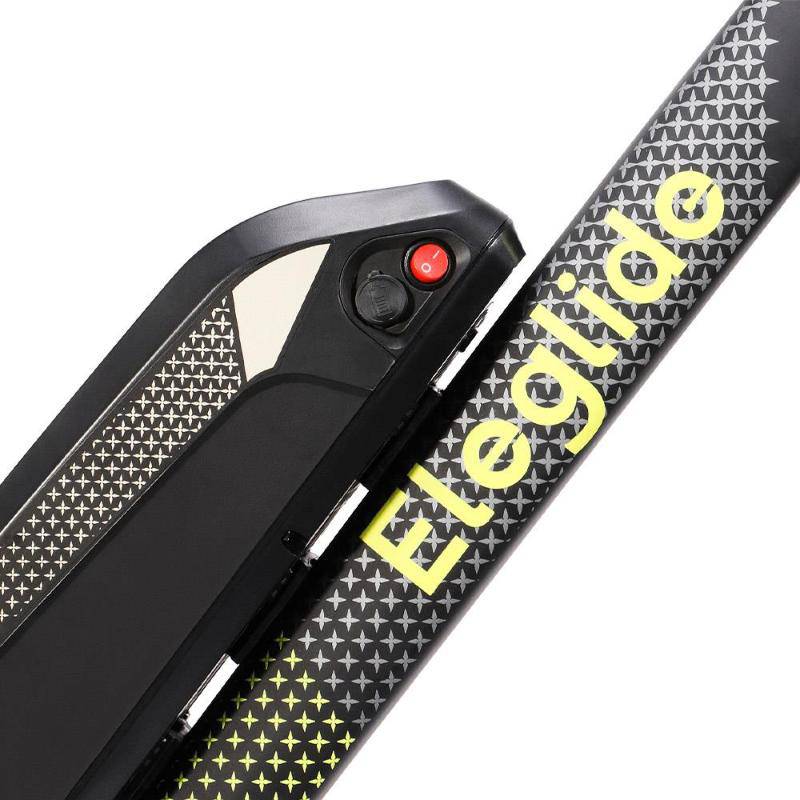

Battery: 13Ah, 36V, 450Wh, with Battery Protection System
Charger Output: 100-240V 2A (Input), 42V 2A (Output)
Charging Time: About 7 hours

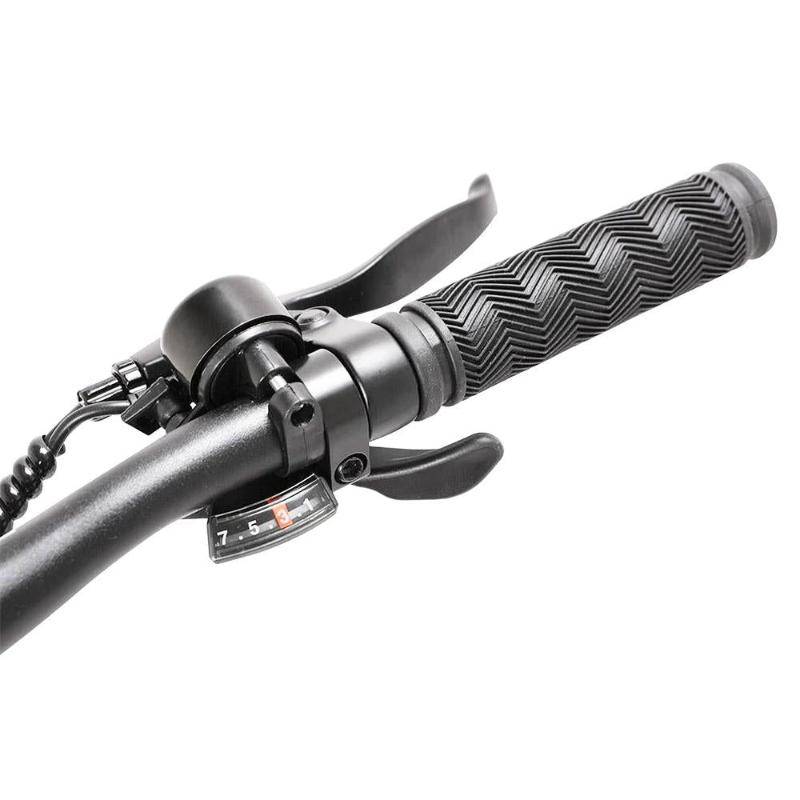

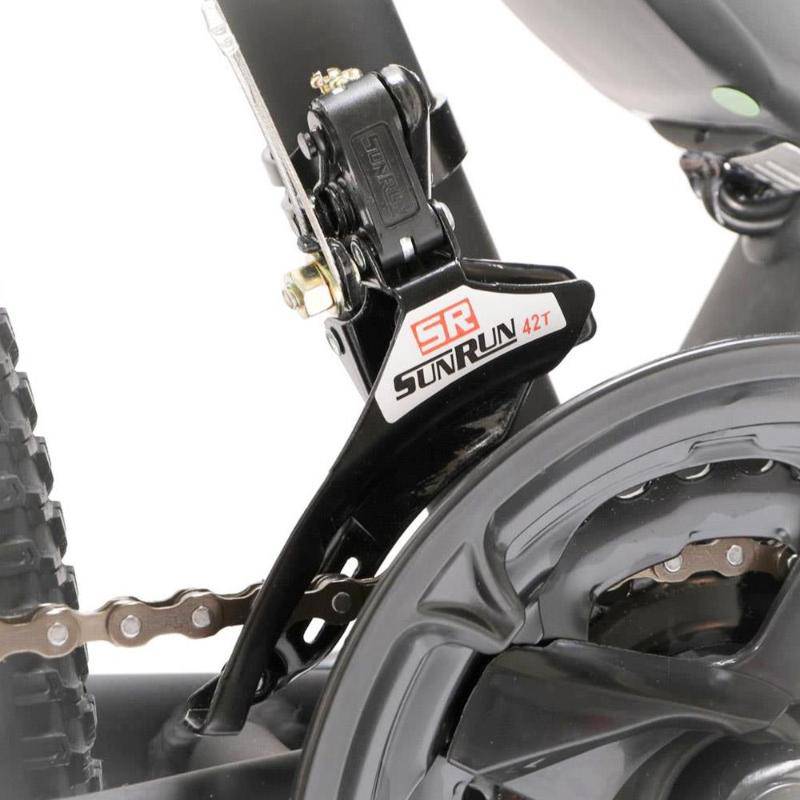

Derailleur: 21 Speed Shimano Gear (Front 3, Rear 7)
Braking System: Dual Disc Brakes & Auto Power-off Design
Front & Rear Brake: Mechanical Disc-160mm Rotor
Suspension: Hydraulic Damping with Lockout

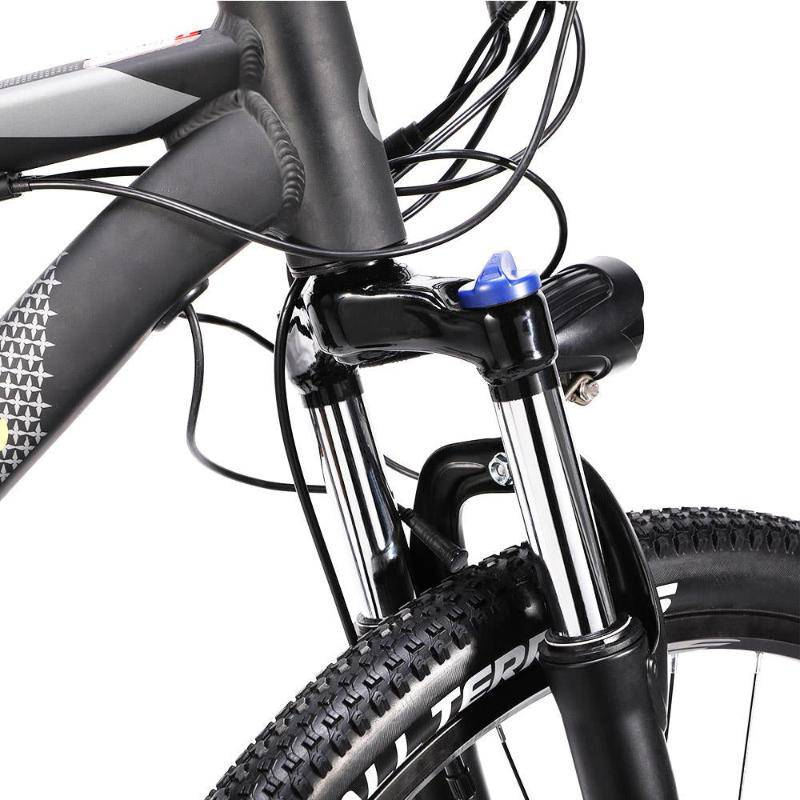

Fork: Hydraulic with Lockout-100mm travel
Tires: Wheel Size M (27.5"): 27.5"x2.1" or Wheel Size L (29"): 29"x2.1" CST Pneumatic Rubber Tires, 45-65PSI (Tire Pressure)
Chain Plate: 42T 34T 24T
Light: LED, 1.65W, 20° (Beam Angle), 0.5㎡ (Irradiated Area)

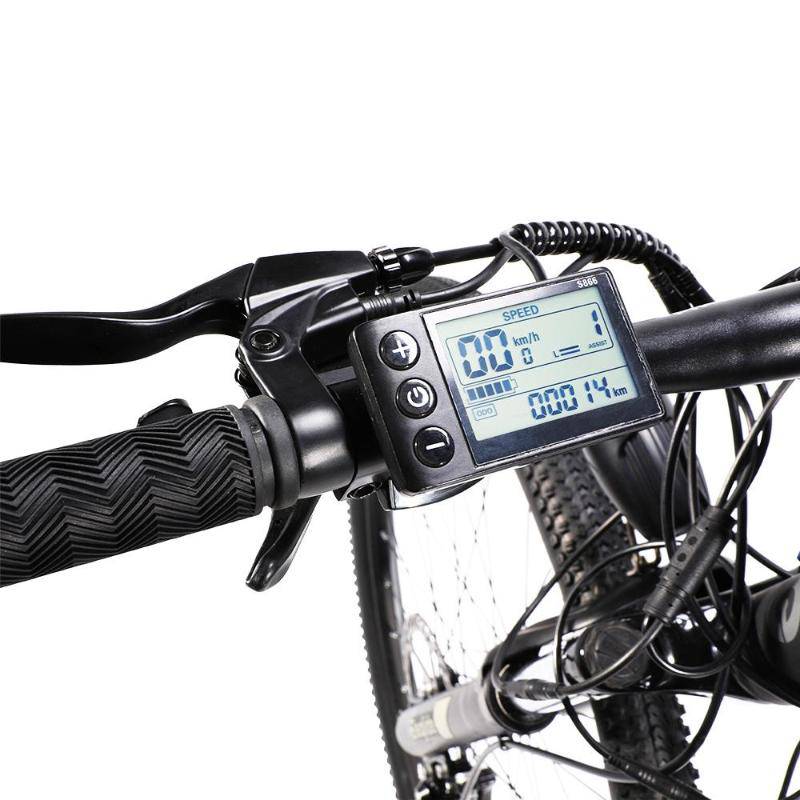

Display: Intelligent LCD Display
Waterproof Rate: IPX4
Recommended height of cyclists:
Wheel Size M (27.5"): 165-195cm (5.41ft-6.4ft)
Wheel Size L (29"): 165-200cm (5.41ft-6.56ft)
5 Speed Mode
- Speed 1: 12 km/h
- Speed 2: 16 km/h
- Speed 3: 20 km/h
- Speed 4: 23 km/h
- Speed 5: 25 km/h
Weight & Size (M: 27.5")
- Weight: 21.7KG (N.W.) 27KG (G.W.)
- Package Size: 1480x240x770mm
- Unfolded Size: 1790x680x1041mm
- Height of Saddle (From The Ground):
850-1050mm (33.5"-41.5") - Length of Handlebar: 680mm (26.8")
Weight & Size (L: 29")
- Weight: 22.8KG (N.W.) 29.8KG (G.W.)
- Package Size: 1480x230x790mm
- Unfolded Size: 1810x700x1080mm
- Height of Saddle (From The Ground):
870-1050mm (34.3"-41.5") - Length of Handlebar: 700mm (27.6")

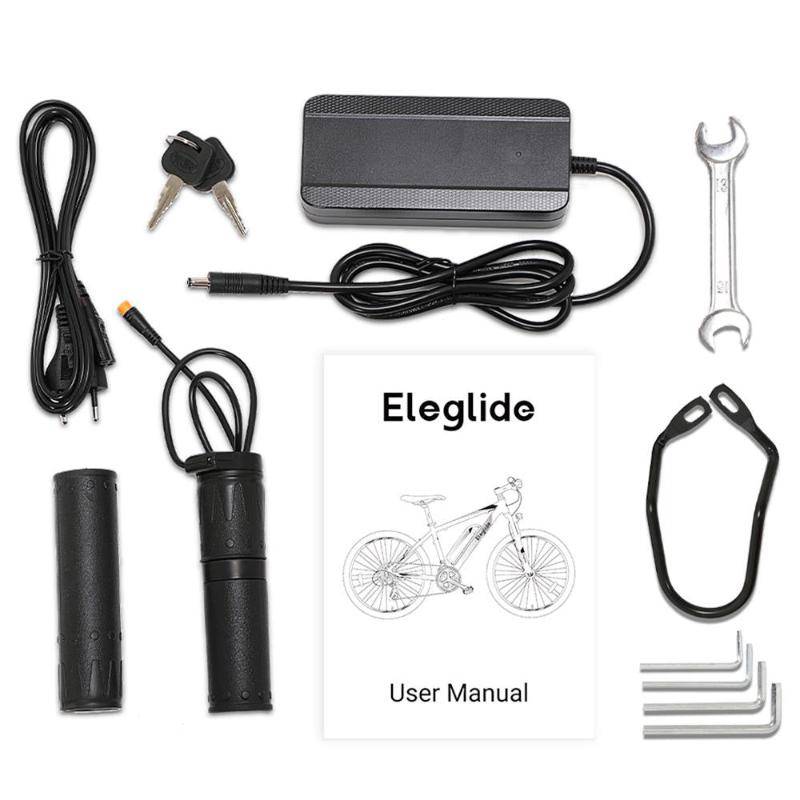

Package Contents
- 1 x M1 Plus Bike
- 2 x Pedal
- 1 x Charger
- 1 x Tool Kit
- 2 x Key
- 1 x User Manual
- 2 x Spoke Reflector

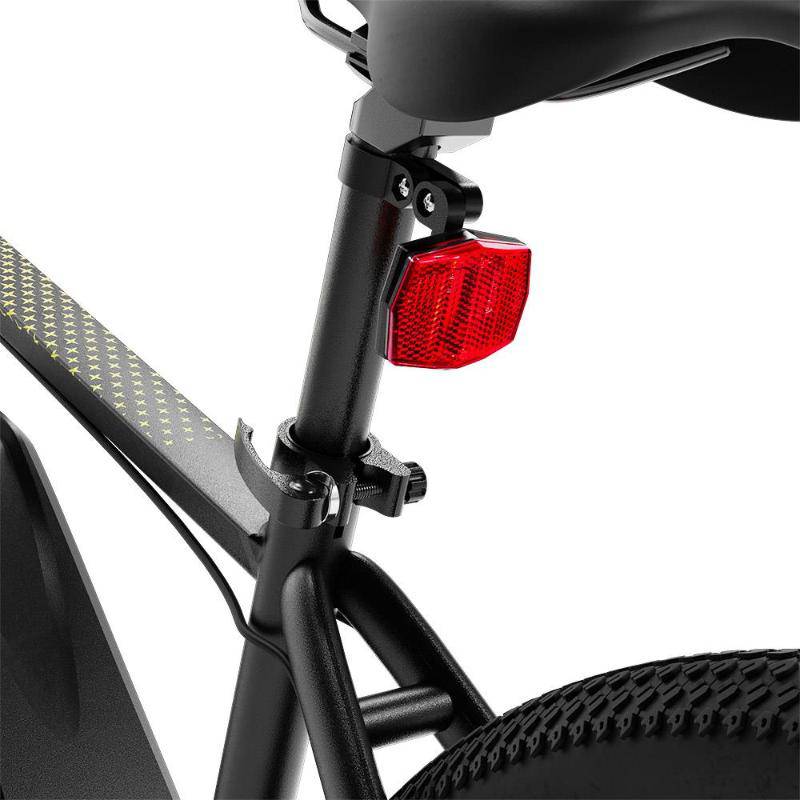

- 1 x Rear Reflector
UK ELECTRIC VEHICLE LEGAL GUIDE
UK ELECTRIC VEHICLE LEGAL GUIDE
Legal Notice: E-Bike and E-Scooter Use in the UK
We appreciate you considering purchasing an e-bike or e-scooter from Swift Ebike Hub. It is important to be aware of the legal requirements in the UK to ensure both safety and compliance with the law.
E-Bikes (Electrically Assisted Pedal Cycles, or EAPCs)
Key Legal Points:
Classification as an EAPC:
- The bike must have pedals that can be used to propel it.
- The motor must not exceed a maximum power output of 250 watts.
- The motor should not provide assistance once the bike reaches 15.5 mph (25 km/h).
Riding Requirements:
- Riders must be at least 14 years old.
- No license, insurance, or vehicle tax is required.
Where You Can Ride:
- EAPCs are permitted on cycle paths, and any area where regular bicycles are allowed.
- They cannot be used on pavements or pedestrian-only zones.
EAPC Identification:
Your e-bike must display either the manufacturer's name and power output or a sticker showing compliance with EAPC regulations.
E-Scooters
Key Legal Points:
Privately Owned E-Scooters:
- It is illegal to use privately owned e-scooters on public roads, pavements, cycle lanes, or pedestrian areas.
- They may only be used on private land with the landowner's permission.
Rental E-Scooters:
The UK government is running e-scooter rental trials in select locations.
- Riders must: Be at least 16 years old.
- Hold a provisional driving licence.
- Follow local regulations on where e-scooters can be ridden (typically cycle lanes and roads).
- Rental e-scooters are insured by the operator.
Helmets and Safety:
- While wearing a helmet is recommended, it is not a legal requirement.
- Riders must adhere to local speed limits and safety guidelines.
Penalties for Non-Compliance
Using a privately owned e-scooter in restricted areas or riding an e-bike that does not meet EAPC standards may result in:
- Fixed penalty notices.
- Points added to your driving licence.
- Fines for operating an uninsured or unlicensed vehicle.
Future Developments
The UK government is currently considering updates to legislation regarding e-scooters and other personal electric transport devices. We recommend staying informed about any changes that could affect your ability to ride legally.
Stay Informed and Ride Safely
We are committed to ensuring you can fully enjoy your e-bike or e-scooter purchase while remaining compliant with UK laws. If you have any questions or need further clarification, please do not hesitate to contact us.
Disclaimer: This notice is for general informational purposes only and does not constitute legal advice. Laws and regulations may vary by location, and it is your responsibility to ensure compliance with all applicable laws.
