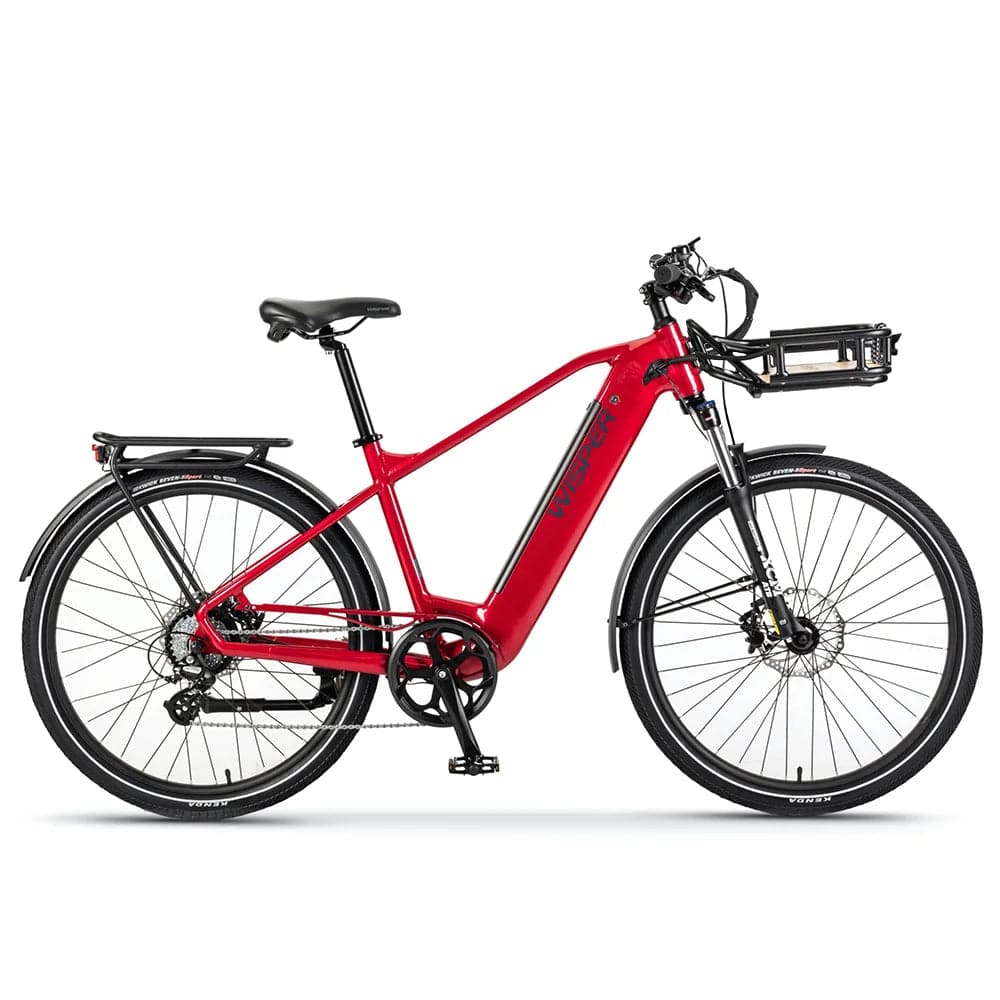

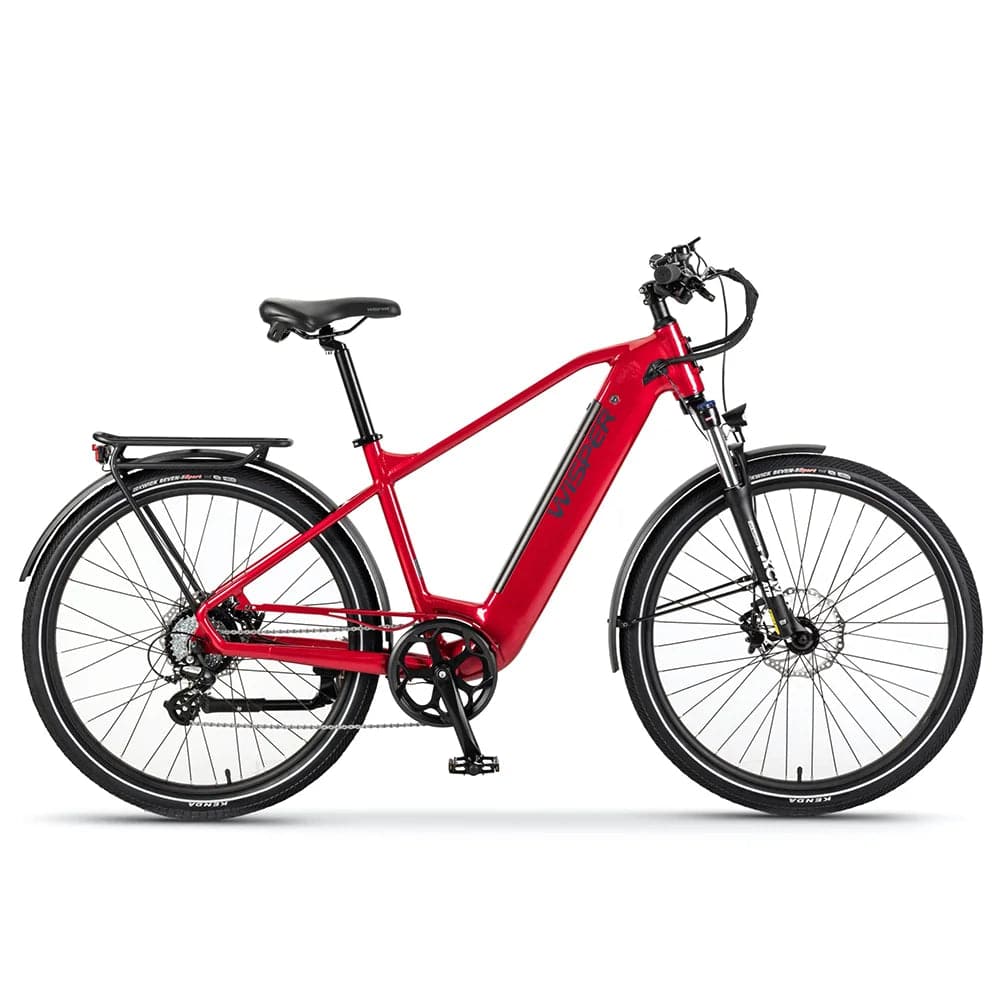

Wisper Wayfarer H9 Hub-Drive Crossbar E-Bike - Pillar Box Red
Wisper Wayfarer H9 Hub-Drive Crossbar E-Bike - Pillar Box Red
Description
The Wisper Wayfarer H9 Hub-Drive Crossbar E-Bike is the perfect all-rounder.
In City spec, the Wisper Wayfarer H9 Hub-Drive Crossbar E-Bike is a comfortable commuter or day to day workhorse but underneath the city exterior beats the heart of a true thoroughbred.
The Wisper Wayfarer H9 Hub-Drive Crossbar E-Bike's super hi torque motor developing 50Nm at the rear wheel, almost the same as 100Nm at the pedals. Strip off the comfort products and change the tyres and you have the perfect off-roader for a day in the hills and forests.
Technical Specification
Motor: Wisper Hi Torque Rear Hub Drive 43.2V 250W Nominal
Lithium Battery: In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh
Assisted range: 450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)
Controls: Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster
Bicycle weight: 450Wh: 26kg
700Wh: 28kg
Frame: Hand welded, 6061 Alloy T4 and T6 tempered
Frame size: 18” 46cm
Frame Colour: Pillar Box Red or Sky Blue 6 coats
Forks: Suntour XCM 30 100mm travel
Bars: eMTB 760mm anodised black
Throttle only range
Using your Wisper bike on throttle only will reduce your range by up to 65% and the TTP will not help increase range whilst you are using the throttle only. If your bike has been upgraded so it works on the throttle only, we still suggest pedalling when you are able to do so. Use the throttle only function when you need to rest or to help you pull away when setting off.
Saddle: Wisper Comfort, eBike with seat handle
Kick stand: Black anodised alloy
Gears: Shimano Altus 8 speed with Rapid Fire shifter
Chain: KMC X8 rust resist 8 speed
Chain drive: Prowheel 48t
Freewheel: 13 to 34
Brakes: Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm
Wheels: Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)
Tyres: Kenda 27.5” 2.2 high puncture resistance with reflector
MTB/Adventure Bike Tyre Upgrade (optional extra)
Goodyear Peak Folding 27.5” x 2.25” First class all-rounder with Rugged-Terrain compound is specifically formulated to balance grip, wear and efficiency. M:Wall puncture protection for increased durability.Tyres larger than 2.25″ wide can only be used without mudguards.
Mudguards: Black Anodised Aluminium 2.6″
Lighting: Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery
*Not included on the Trail/Mountain configuration
Stem: Magix black anodised 70mm
Seat post: 31.6mm 350mm with 100mm safety line
Rear Rack: Wisper integrated custom, 17kg limit
Front Rack (optional extra): Wisper integrated custom, 10kg limit
Max Weight Load Inc. Luggage
21st 135kg
