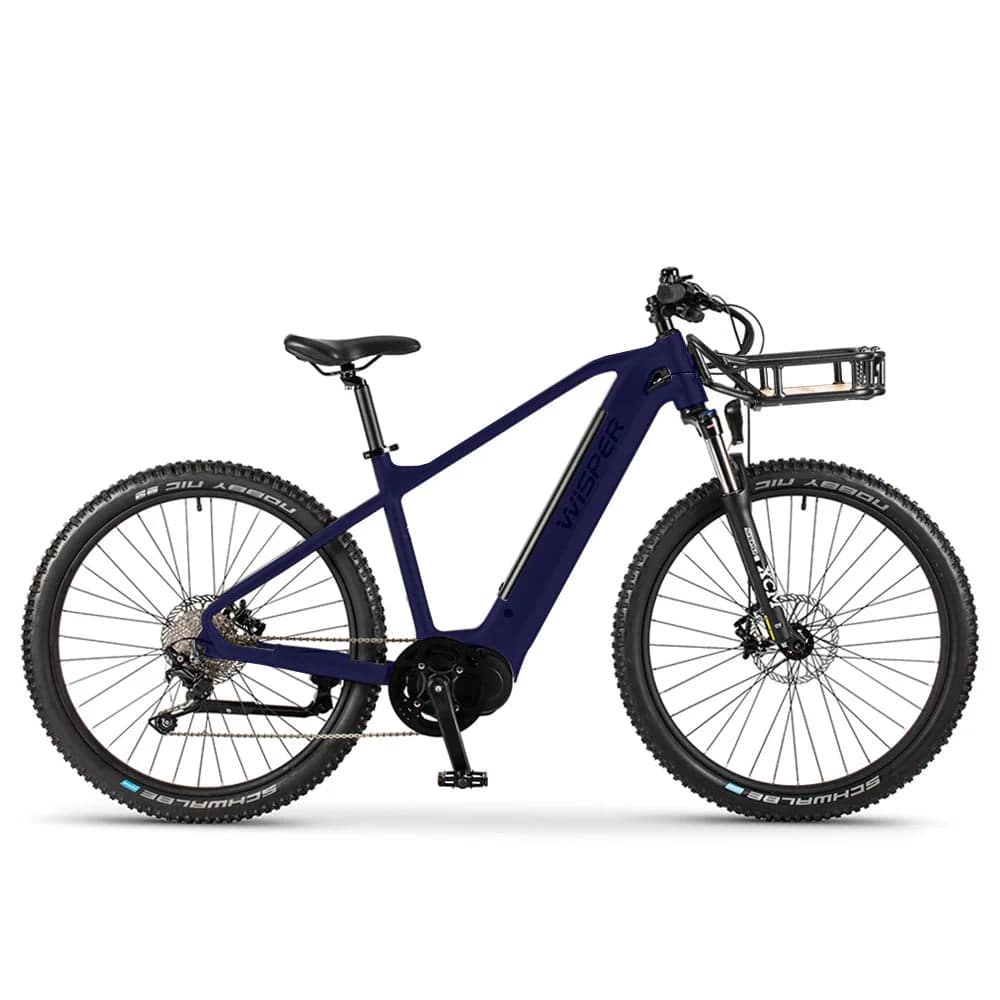

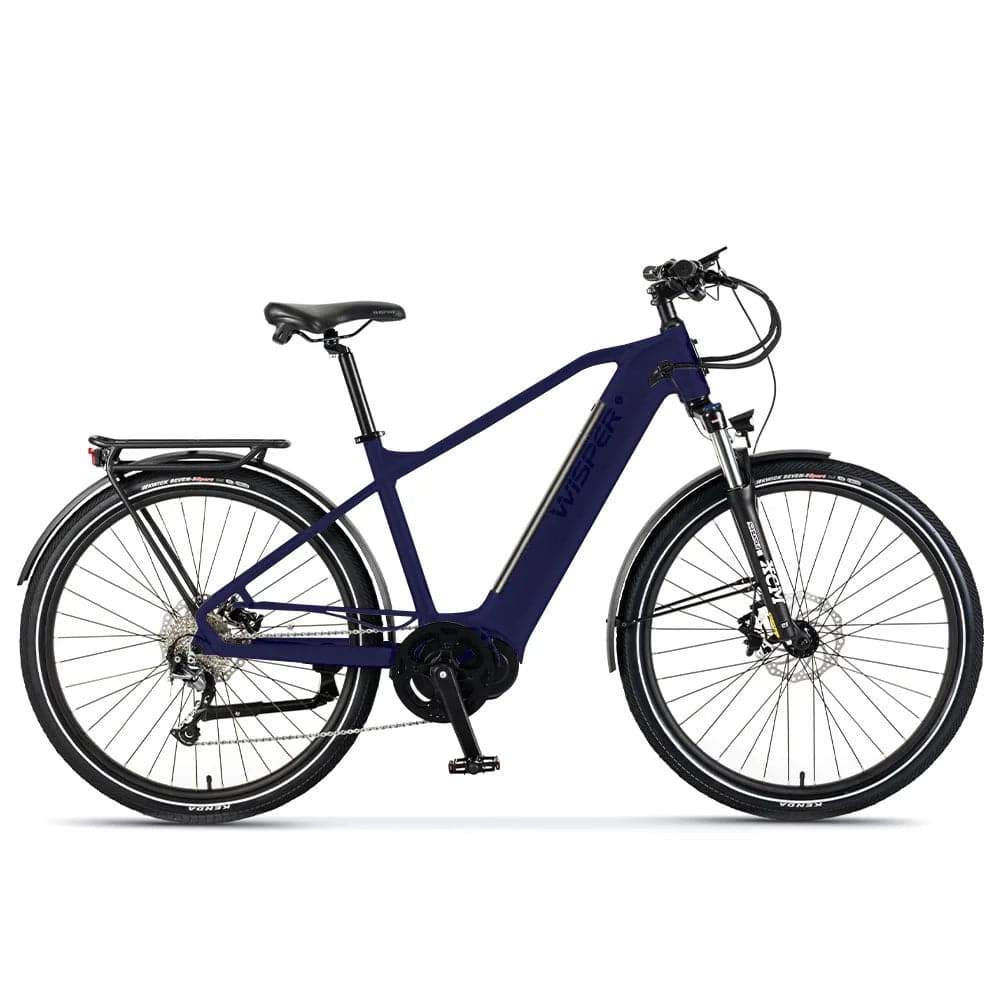

Wisper Wayfarer M9 Mid-Drive Crossbar E-Bike - Midnight Blue
Wisper Wayfarer M9 Mid-Drive Crossbar E-Bike - Midnight Blue
Description
The Wisper Wayfarer M9 Mid-Drive Crossbar E-Bike is the perfect all-rounder.
In City spec, Wisper Wayfarer M9 Mid-Drive Crossbar E-Bike is a comfortable commuter or day to day workhorse but underneath the city exterior beats the heart of a true thoroughbred, the Wayfarer super hi torque motor developing 100Nm.
Strip off the comfort products and change the tyres and you have the perfect off-roader for a day in the hills and forests. If you require further assistance, please do not hesitate to contact us.
Technical Specification
Motor: Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal
Lithium Battery: In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh
Assisted range: 450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)
Controls: Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster
Bicycle weight: 450Wh: 27kg
700Wh: 29kg
Frame: Hand welded, 6061 Alloy T4 and T6 tempered
Frame size
18” 48cm
Frame Colour: Iridium Silver 6 coats
Forks: Suntour XCM 32 100mm travel, through axle
Bars: eMTB 760mm anodised black
Stem: Magix black anodised 70mm
Seat post: 31.6mm 350mm with 100mm safety line
Saddle: Wisper Comfort, eBike with seat handle
Kick stand: Black anodised alloy
Gears: Shimano Alivio 9 speed with Rapid Fire shifter
Chain: KMC X9 rust resist 9 speed
Chain drive: 44t Rear
Freewheel: 11 to 36
Pedals: Alloy
Brakes: Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm
Wheels: Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)
Tyres: Kenda 27.5” 2.2 high puncture resistance with reflector
Adventure/MTB Bike Tyre Upgrade (optional extra)
Goodyear Peak Folding 27.5” x 2.25” First class all-rounder with Rugged-Terrain compound is specifically formulated to balance grip, wear and efficiency. M:Wall puncture protection for increased durability. Tyres of more than 2.25″ can only be used without mudguards.
Mudguards: Black Anodised Aluminium 2.6″
Lighting: Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery
*Not included on the Trail configuration
Rear Rack: Wisper integrated custom, 17kg limit
Front Rack (optional extra): Wisper integrated custom, 10kg limit
Max Weight Load Inc. Luggage: 21st 135kg
